I-Pi SMARC IMX95

$395
$395
Sold out

PRODUCT INFORMATION

SMARC R2.2 reference development kit based on NXP i.MX 95 SoC

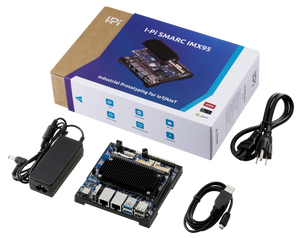

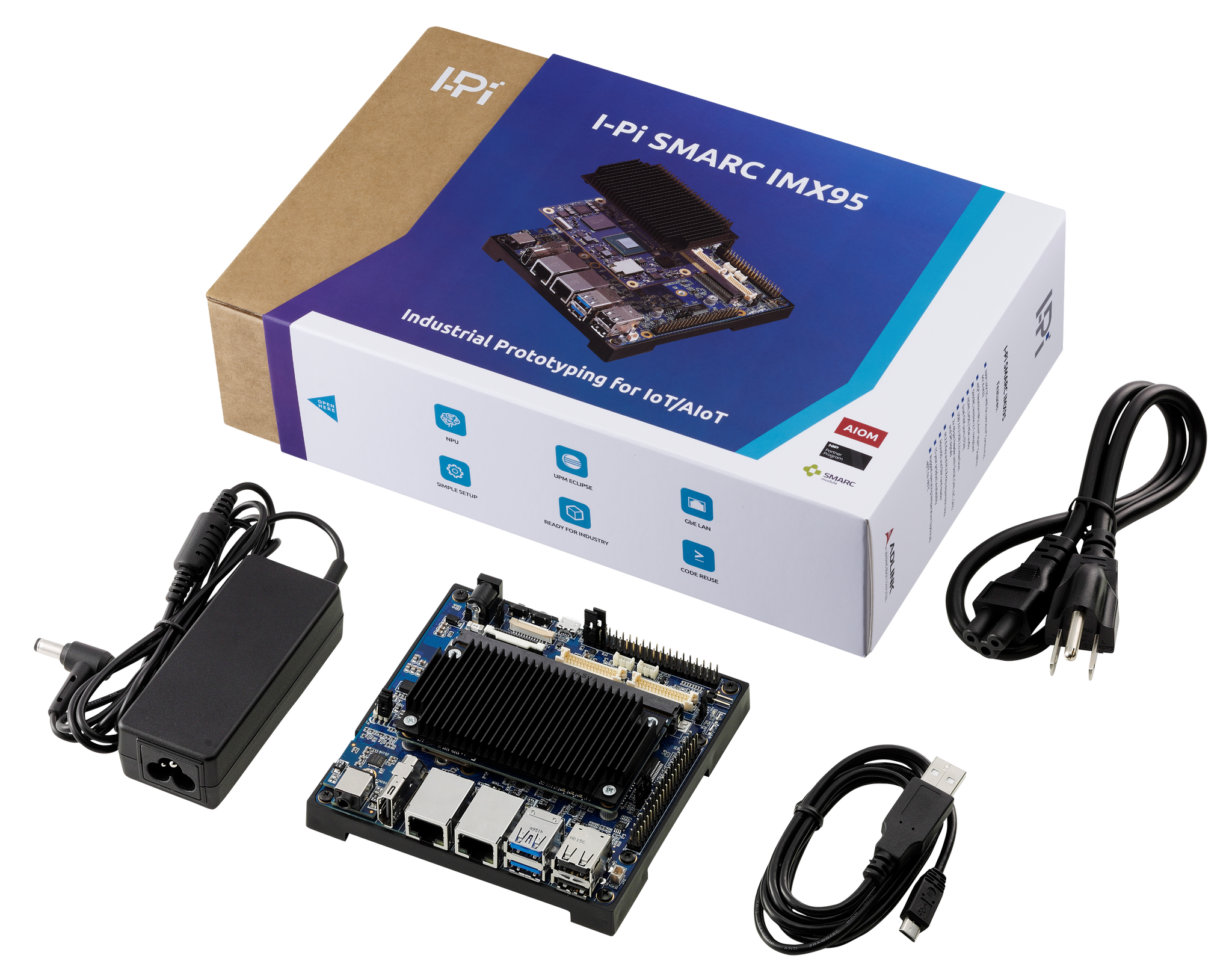

BOX INCLUDING:

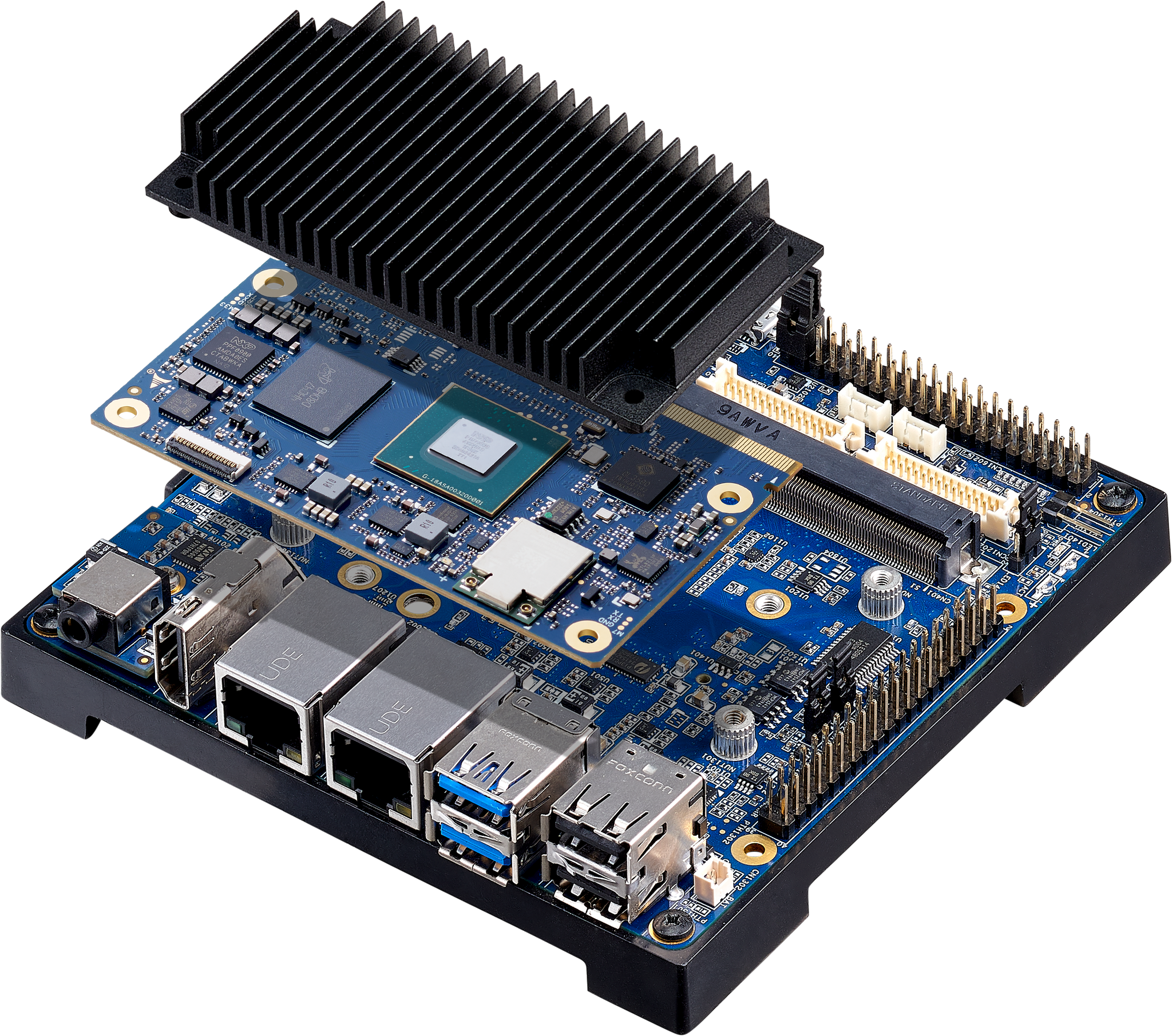

I-Pi SMARC IMX95 assembly consisting of

  • ADLINK I-Pi SMARC Plus carrier

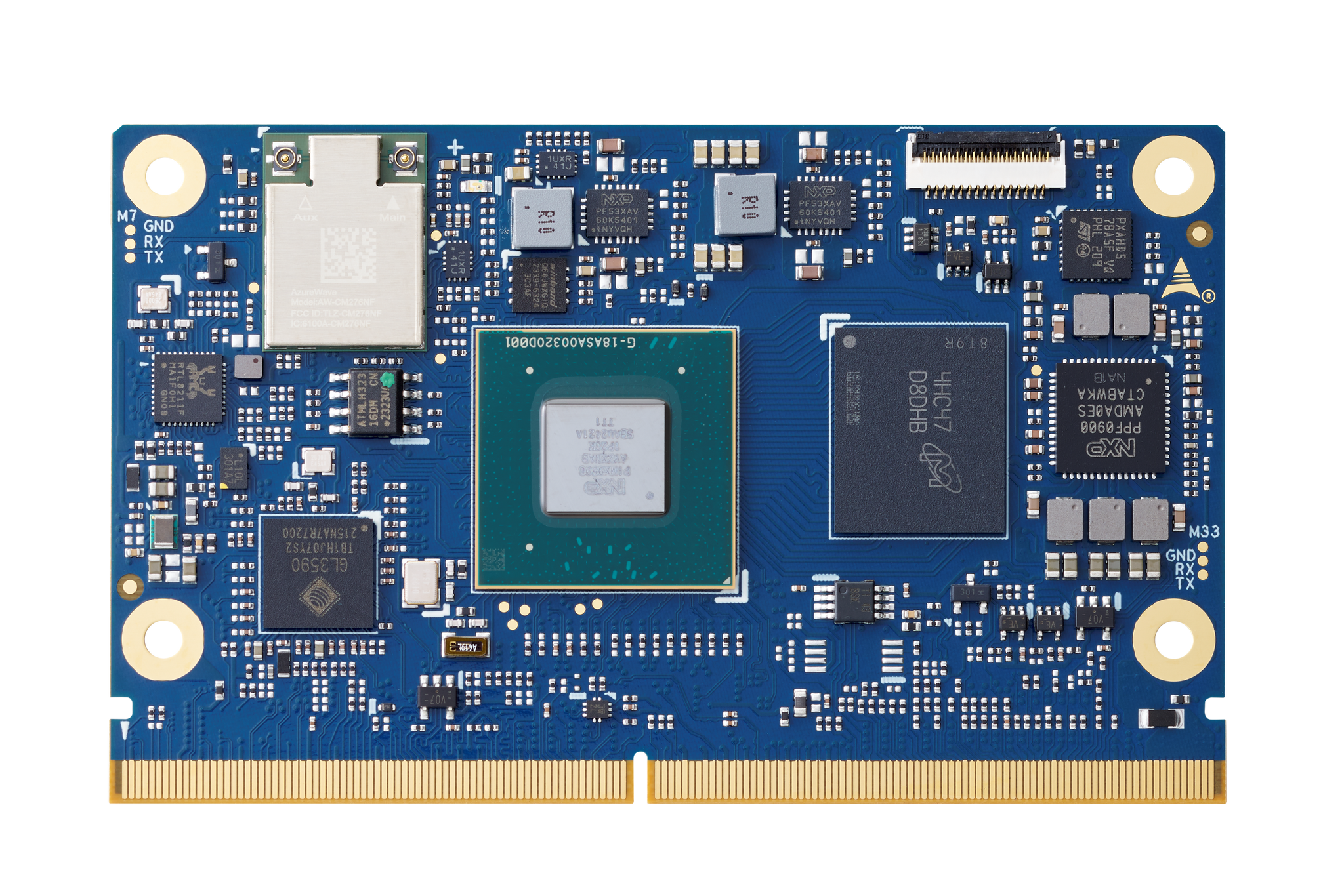

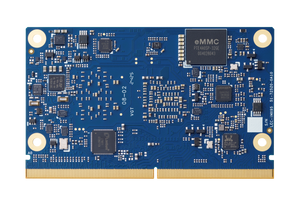

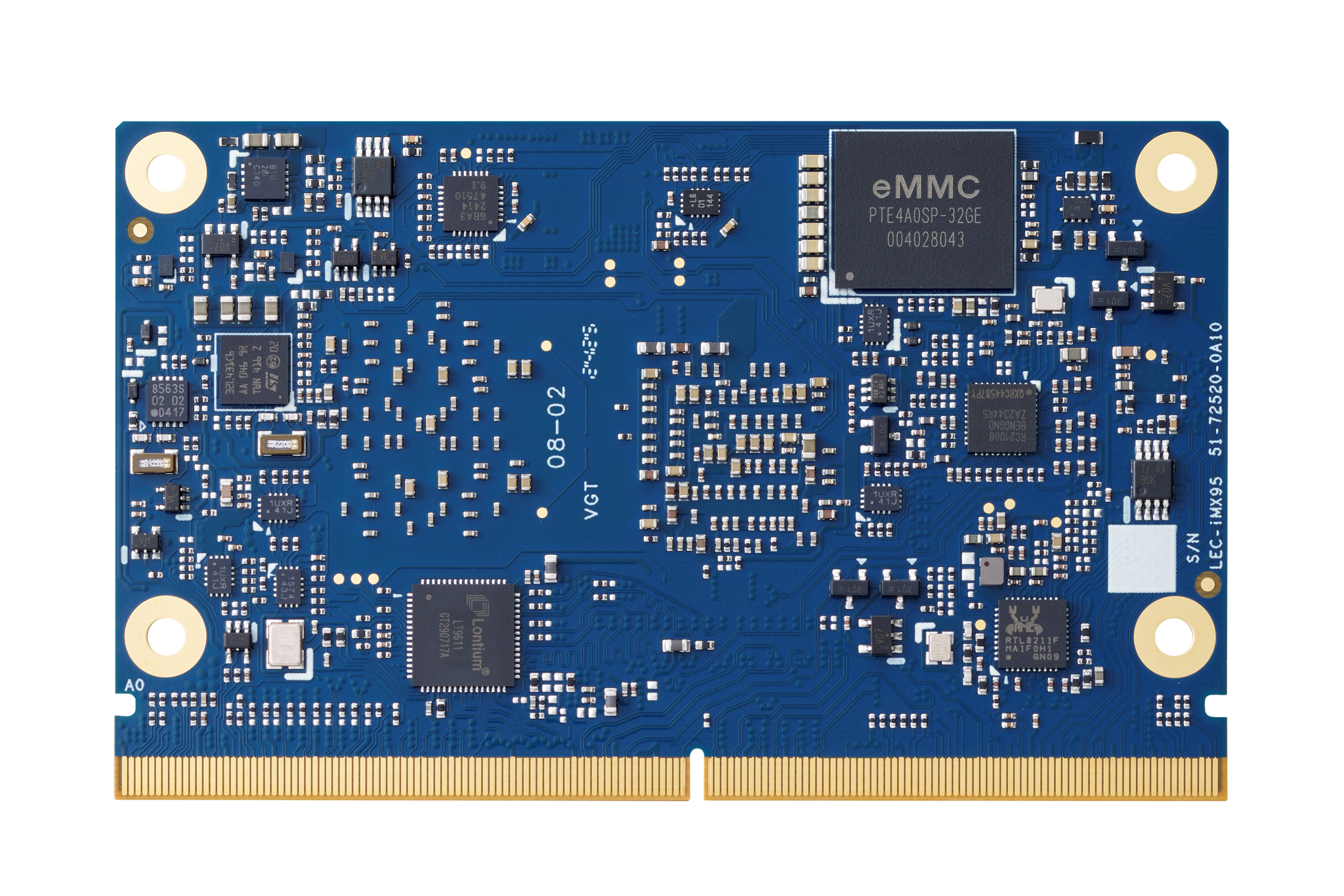

  • ADLINK LEC-IMX95 SMARC R2.2 module with NXP i.MX95 and 8GB soldered LPDDR5 memory and 32GB eMMC, Wi-Fi & BT
  • 110/220 VAC to 19VDC adapter (US/EU Type-C power cord)
  • Micro USB Cable

SPECIFICATIONS:

NXP i.MX 95 with hexa-core Arm Cortex-A55, with integrated up to 2 TOPS NPU (Neural Processing Unit), TrustZone technology, EdgeLock secure enclave, Arm Mali-G310 GPU 3D + 2D Graphics, ISP, VPU, MIPI-DSI 4 lanes, HDMI, Camera MIPI-CSI 4 lanes + MIPI-CSI 2 lanes, 2x GbE LAN and 1x 10G LAN (TSN capable) , 2x PCIe x1 Gen3, 2x USB 3.0 + 3x USB 2.0 + 1x USB 2.0 OTG, 4x UART, 2x CAN 2.0B and or FD, 2x SPI, 14x GPIO.
