Industrial Prototyping For IoT

Using off-the-shelf SMARC

Computer-on-Module,ready for Industry

Industial
Prototyping
For IoT

Using off-the-shelf SMARC

Computer-on-Module,

ready for Industry

New

I-Pi SMARC IMX8M Plus

AIoT/IoT Protoype Kit based on NXP i.MX8M Plus withQuad Cortex-A53, 2.3 TOPS Neural Processing Unit (optional), TrustZonetechnology, Vivante GC7000UL 3D Graphics, MIPI-DSI 4 lanes, HDMI, CameraMIPI-CSI 4 lanes + MIPI-CSI 2 lanes, 2x GbE LAN (with one TSN capable) , 2xPCIe x1 Gen3, 2x USB 3.0 + 3x USB 2.0 + 1x USB 2.0 OTG, 3x UART, 2x CAN 2.0Band or FD, 2x SPI, 14x GPIO.

I-Pi SMARC PX30

IoT Protoype Kit based on Rockchip PX30 with Quad-core ARM Cortex-A35, Cryptography Extensionsfor end-to-end IoT security, 3D Graphics over MIPI DSI 4 to HDMI, Camera MIPICSI 4 lanes, 2x 10/100Mbps LAN, 4x USB 2.0 + USB 2.0 OTG, 2 UART, CAN 2.0B and/or FD, SPI, 12 GPIO. The devkit speeds prototyping and development for industrial applications.

I-Pi SMARC Elkhart Lake

IoT/IoT Prototype Kit based on Intel Atom x6000(formerly Elkhart Lake) processor with integrated Intel UHD graphics and high speed interfaces. LPDDR4 memory support, also available with rugged operating temperature range and low power envelope, making it a perfect match for mission critical fanless edge computing applications that require safety and reliability at all times.

HOW IT WORKS

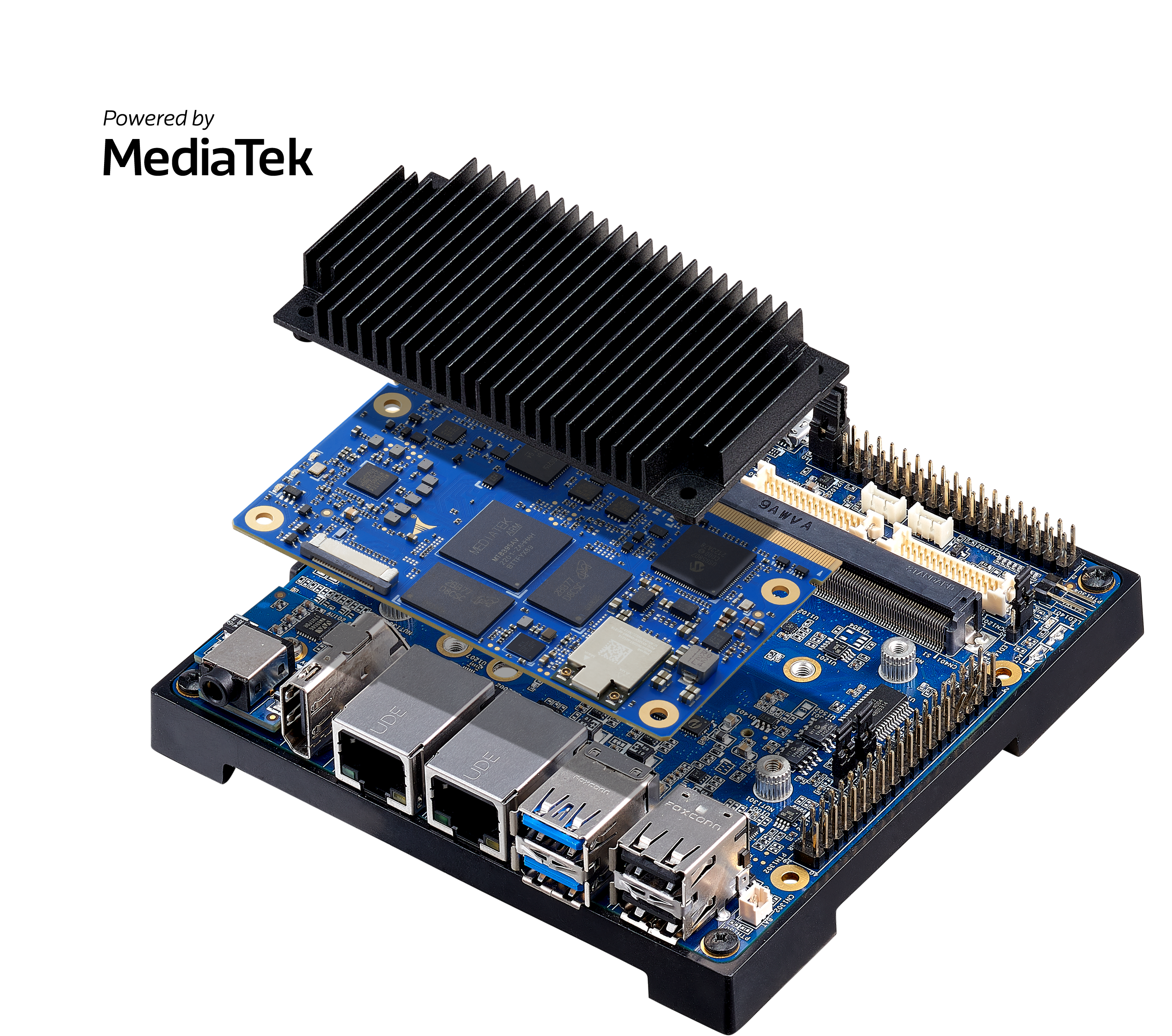

I-Pi SMARC IMX8M Plus consists of a simple carrier paired with a SMARC 2.1.1 Computer-on-Module.

The module features NXP i.MX 8M Plus series SoC with an integrated up to 2.3 TOPS NPU, GPU, ISP and VPU, offering unmatched flexibility, rich connectivity and high scalability.

Modules are specifically designed for typical industrial embedded applications that require long life, high MTBF and strict revision control.

Use popular off the shelve sensors and create prototypes or proof of concepts on short notice and impress your boss.
