COM Express Type 10 Elkhart Lake

PRODUCT INFORMATION

IoT Prototype Kit based on Intel Elkhart Lake

Box including:

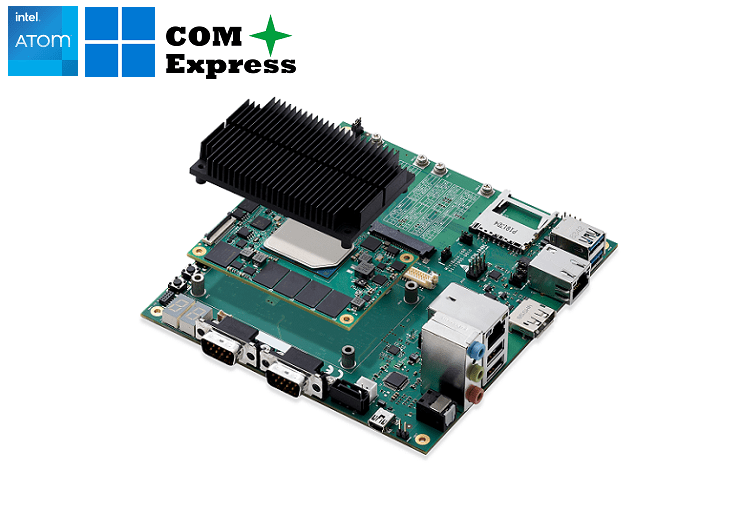

COM Express Type 10 Elkhart Lake assembly consisting of

• MiniBASE-10R carrier
• nano X-EL COM Express Type 10 mini size module with Intel 6th Gen. Atom® x6211E dual-core SoC (Elkhart Lake) and 2GB LPDDR4 memory

THS-nXEL-BT-I low-profile heatsink

110/220 VAC to 19VDC adapter (with power cord)

22-pin to 7-pin SATA cable

Specifications:

Intel 6th Gen. Atom® x6211E dual-core SoC with Intel UHD integrated graphics, Intel TCC and TSN technologies, 4GB LPDDR4 memory with in-band-ECC support, LVDS, DSI, HDMI graphics outputs, 2x 2.5GbE LAN, PCIe Gen3, 2x USB 3.2/2.0/1.1 + 6x USB 2.0/1.1, 2x UART, 2x CAN 2.0B and or FD, SPI, 8x GPIO
