I-Pi OSM 520 – I-Pi SMARC

Temporary out of stock, orders will be shipped on a first in/first out policy. Contact ADLINK sales representative.

I-Pi OSM 520

$660
$660
Sold out

PRODUCT INFORMATION

OSM R1.2 reference development kit based on MediaTek Genio 520 SoC

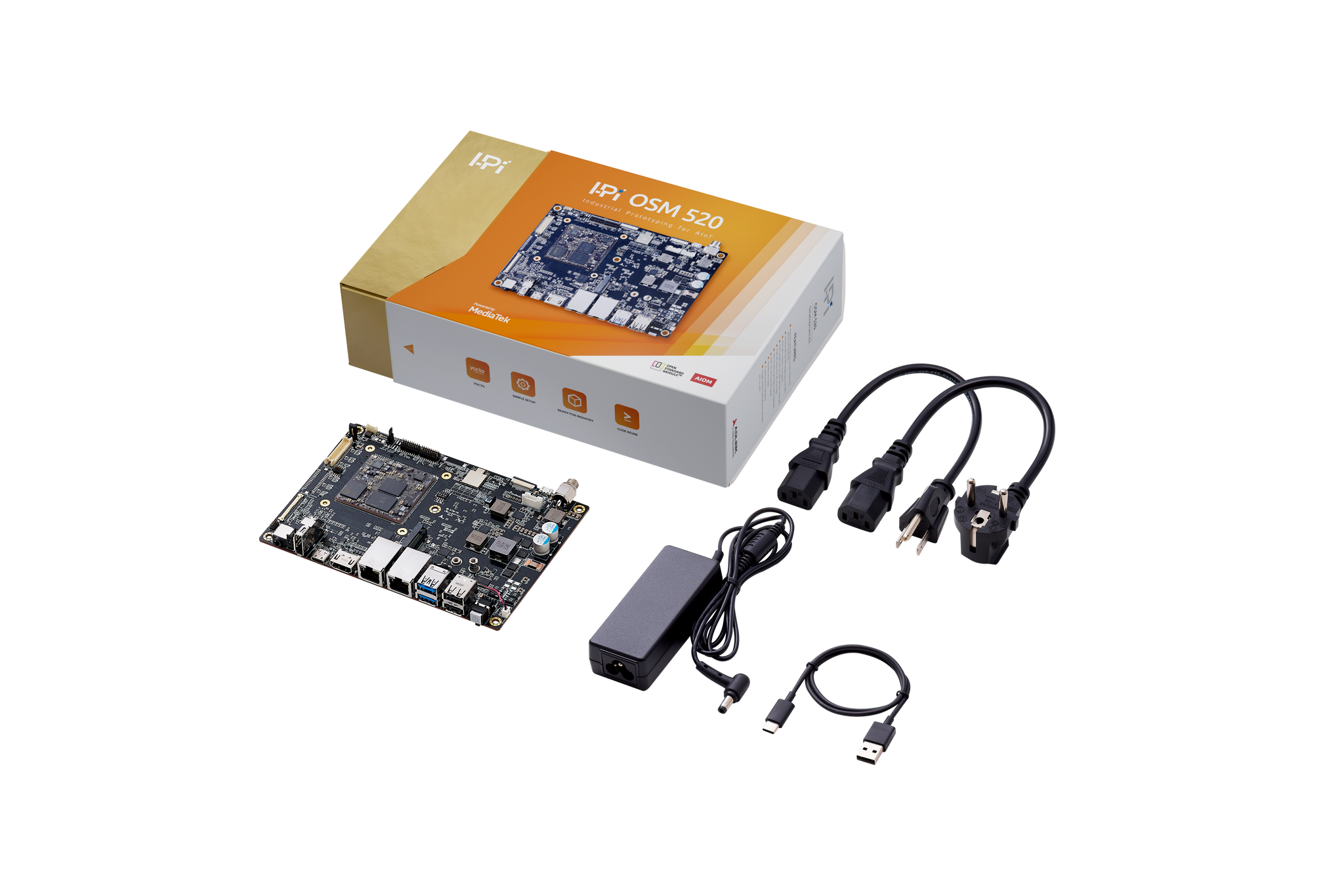

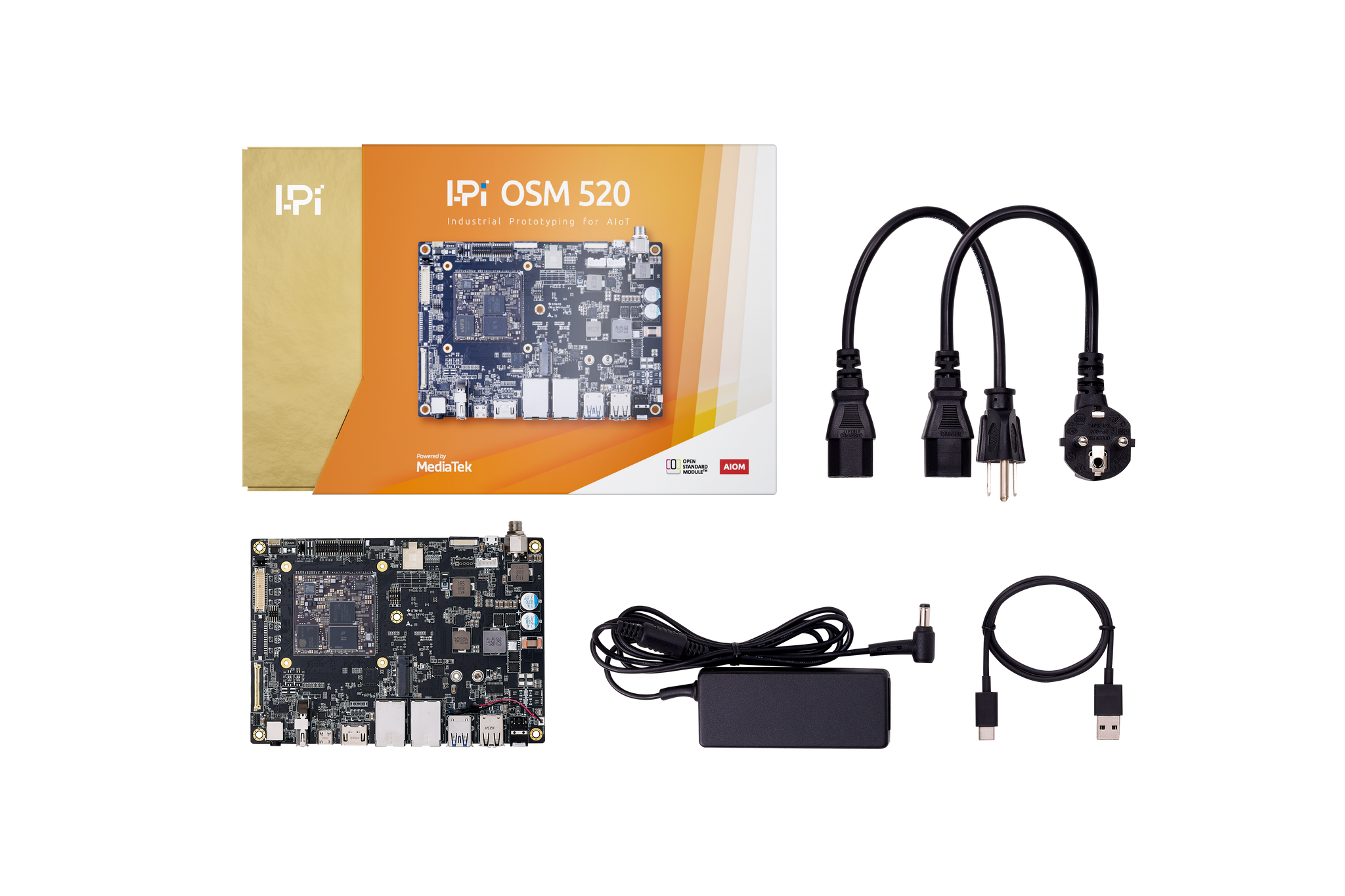

BOX INCLUDING:

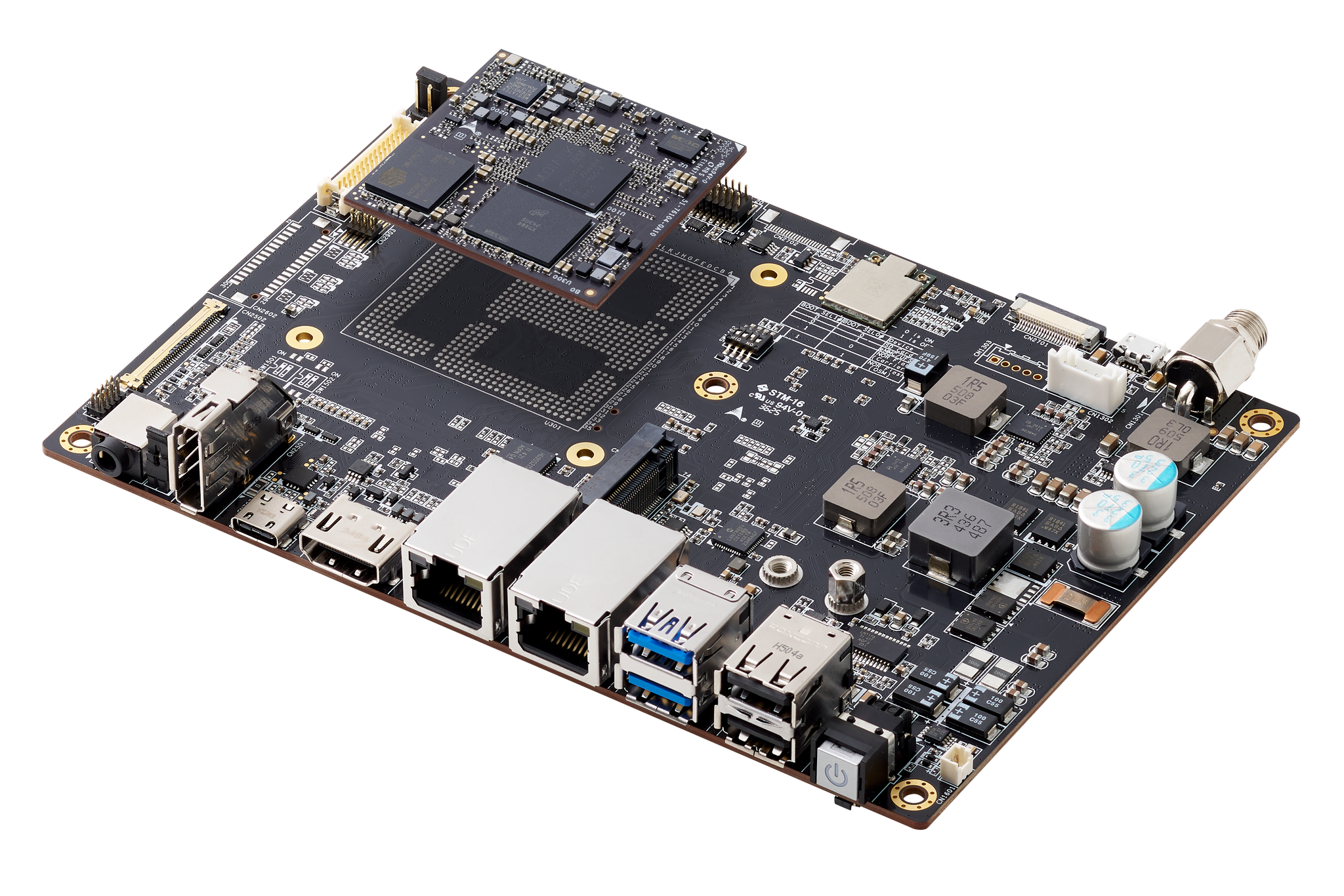

I-Pi OSM 520 assembly consisting of

  • ADLINK OSM-EB4 4” carrier with soldered down module
  • ADLINK OSM-MTK520 OSM Size-L module with octa-core MediaTek Genio 520 and 4GB soldered LPDDR5 memory and 64GB UFS
  • 110/220 VAC to 19VDC adapter (US/EU Type-C power cord)
  • USB Type-C Cable

SPECIFICATIONS:

MediaTek Genio 520 with octa-core 2x Arm Cortex-A78 and 6x Arm Cortex-A55, Arm Mali-G57 MC2 GPU and MediaTek 8th Gen NPU up to 10 TOPS, MIPI-DSI, eDP, eDP, single LVDS, 2x MIPI-CSI 4 lanes, 1x GbE LAN, 1x USB 3.1, 2x USB 2.0 + 1x USB 2.0 OTG, 4x UART, 3x SPI, 22x GPIO.
