Type 10 Amston Lake



PRODUCT INFORMATION

IoT Prototype Kit based on Intel Amston Lake

BOX INCLUDING:

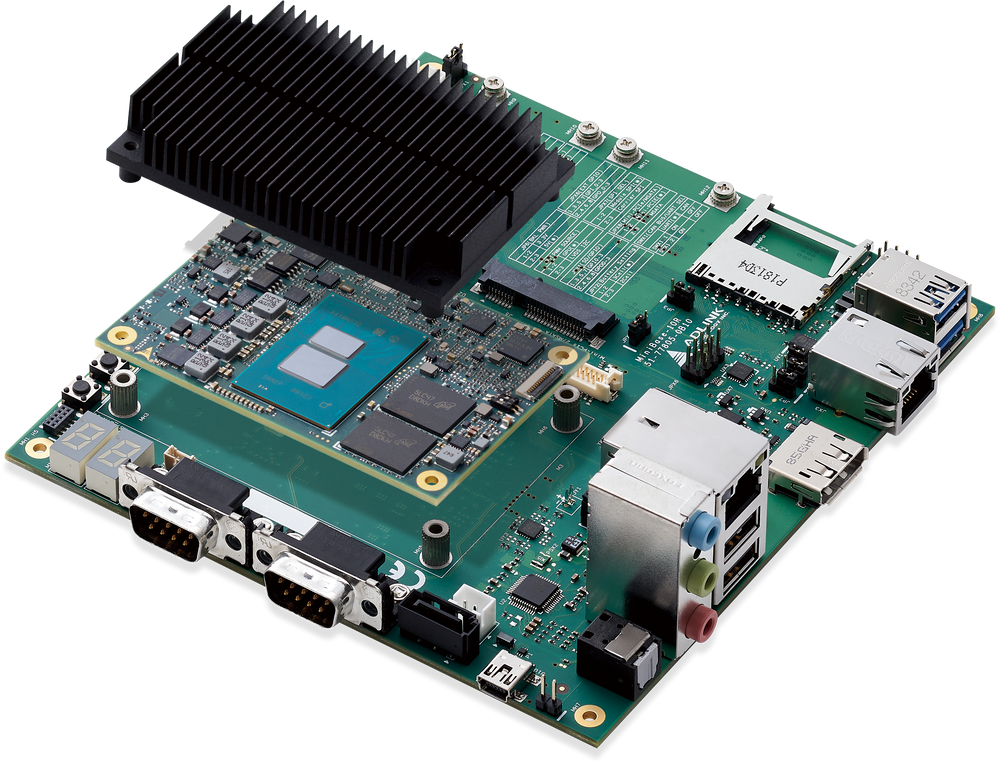

Type 10 Amston Lake assembly consisting of

  • MiniBASE-10R carrier
  • nanoX-ASL COM Express Type 10 mini size module with Intel 7th Gen. Atom® x7000RE dual core SoC (Amston Lake) and up to 8GB LPDDR5 memory
  • THS-nXASL-B low profile heatsink
  • 110/220 VAC to 19VDC adapter (with power cord)
  • 22-pin to 7-pin SATA cable

SPECIFICATIONS:

Intel 7th Gen. Atom® x7000RE dual-core SoC with Intel UHD integrated graphics, Intel TCC and TSN technologies, 8GB LPDDR5 memory with in-band-ECC support, LVDS, eDP, DDI graphics outputs, 2x 2.5GbE LAN, PCIe Gen3, 2x USB 3.2/2.0/1.1 + 6x USB 2.0/1.1, 2x UART, SPI, 8x GPIO.

HOW IT WORKS

Type 10 Amston Lake consists of a simple carrier paired with a COM.0 R3.1 Computer-on-Module.

The module features Intel 7th Gen. x7000RE dual core Atom CPU with Intel UHD Graphics, offering unmatched flexibility, rich connectivity, and high scalability.

Modules are specifically designed for typical industrial embedded applications that require long life, high MTBF and strict revision control.
