HOW IT WORKS

The platform provides a cloud-native environment for embedded edge development.

It supports the open source edk2 as bootloader with UEFI, so customers can just download a stock aarch64 (arm64) ISO such as Ubuntu and install it through booting a live ISO directly on the target. The same convenience we have become used to by using x86 / amd64 target systems.

It's powered by Ampere Altra SoC that delivers the scalable power and performance necessary to drive a variety of use cases in the embedded development community from autonomous vehicles to medical instrumentation and industrial robotics

Ampere Altra Developer Platform

PRODUCT INFORMATION

COM-HPC server type reference development platform based on Ampere Altra SoC


System configuration:

  • AADP-32: COM-HPC Ampere Altra server type module with Ampere Altra 32-core Q32-17 SoC and 2x16GB 3200MHz DDR4 ECC Reg and 128 GB NVMe M.2 storage

  • AADP-64: COM-HPC Ampere Altra server type module with Ampere Altra 64-core Q64-22 SoC and 4x16GB 3200MHz DDR4 ECC Reg and 128 GB NVMe M.2 storage

  • AADP-96: COM-HPC Ampere Altra server type module with Ampere Altra 96-core M96-28 SoC and 6x16GB 3200MHz DDR4 ECC Reg and 256 GB NVMe M.2 storage

  • AADP-128: COM-HPC Ampere Altra server type module with Ampere Altra 128-core M128-26 SoC and 6x16GB 3200MHz DDR4 ECC Reg and 256 GB NVMe M.2 storage

  • COM-HPC Server Base carrier board

  • 1x GbE + 4x 10GbE LAN ports (optional)

  • 64x PCIe Gen4 lanes (3 x16, 2 x4 and 2 M.2 slots)

  • Liquid cooling assembly

  • 750 Watt power supply

  • Tower enclosure

Specifications:

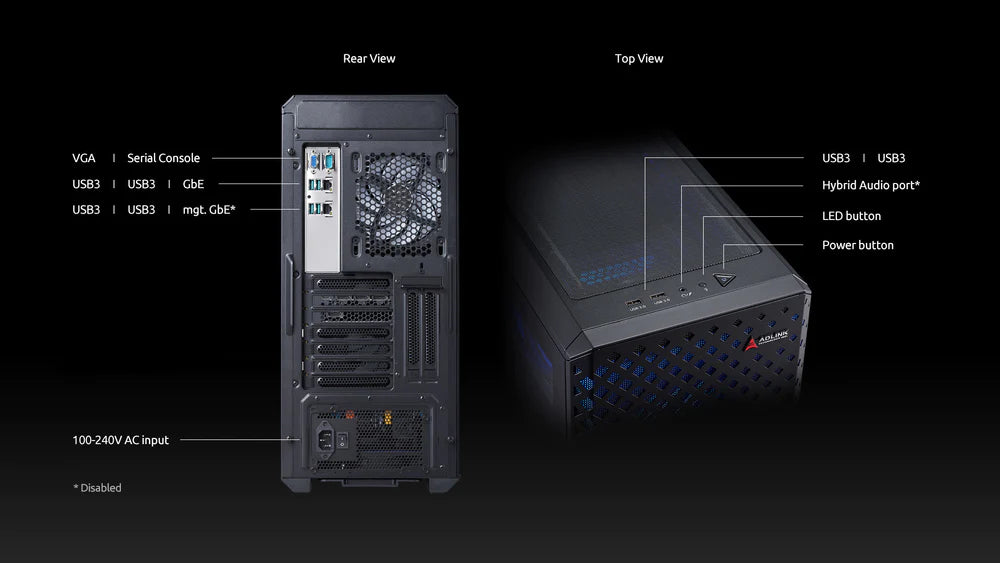

Ampere Altra SoC (Arm Neoverse N1 based architecture), 32 Arm v8.2 64-bit cores up to 1.7GHz (AADP-32) or 64 Arm v8.2 64-bit cores up to 2.2GHz (AADP-64) or 96 Arm v8.2 64-bit cores up to 2.8GHz (AADP-96) or 128 Arm v8.2 64-bit cores up to 2.6GHz (AADP-128). 2x16GB (AADP-32) or 4x16GB (AADP-64) or 6x16GB (AADP-96/AADP-128) DDR4 memory, 128GB NVMe storage (AADP-32/64) or 256GB NVMe storage (AADP-96/128), 64x PCIe Gen4 lanes (3 x16 available), 4x 10GbE (optional) and 1x GbE LAN, 4x USB 3.0/2.0 [rear I/O], 2x USB 3.0 [front panel], open source EDKII, pre-installed Ubuntu Server OS.

Ampere Altra Developer Platform intro

COM-HPC Modular Architecture

COM-HPC is the new PICMG standard for high-performance Computer-on-Modules. It aims to drive the newest breed of embedded edge servers with limitless scalability for today and tomorrow. The COM-HPC specification defines five different module sizes, with the largest Size E (Server Type) serving next-gen headless edge servers and accommodating up to 8 DIMMs.
