I-Pi OSM IMX95



PRODUCT INFORMATION

OSM R1.2 reference development kit based on NXP i.MX 95 SoC

BOX INCLUDING:

I-Pi OSM IMX95 assembly consisting of

  • ADLINK OSM-EB4 4” carrier with soldered down module
  • ADLINK OSM-IMX95-H-4G-32G-CT OSM Size-L module with NXP i.MX95 and 4GB soldered LPDDR4 memory and 32GB eMMC, Wi-Fi & BT (optional)
  • 110/220 VAC to 19VDC adapter (US/EU Type-C power cord)
  • USB Type-C Cable

SPECIFICATIONS:

NXP i.MX 95 with hexa-core Arm Cortex-A55, with integrated up to 2 TOPS NPU (Neural Processing Unit), TrustZone technology, EdgeLock secure enclave, Arm Mali-G310 GPU 3D + 2D Graphics, ISP, VPU, MIPI-DSI 4 lanes, HDMI, LVDS, Camera MIPI-CSI 4 lanes, 2x GbE LAN (TSN capable), 2x USB 3.0 + 2x USB 2.0 + 1x USB 2.0 OTG, 5x UART, 1x M.2 M-key PCIe Gen3, 2x CAN-FD, 3x SPI, 14x GPIO.

HOW IT WORKS

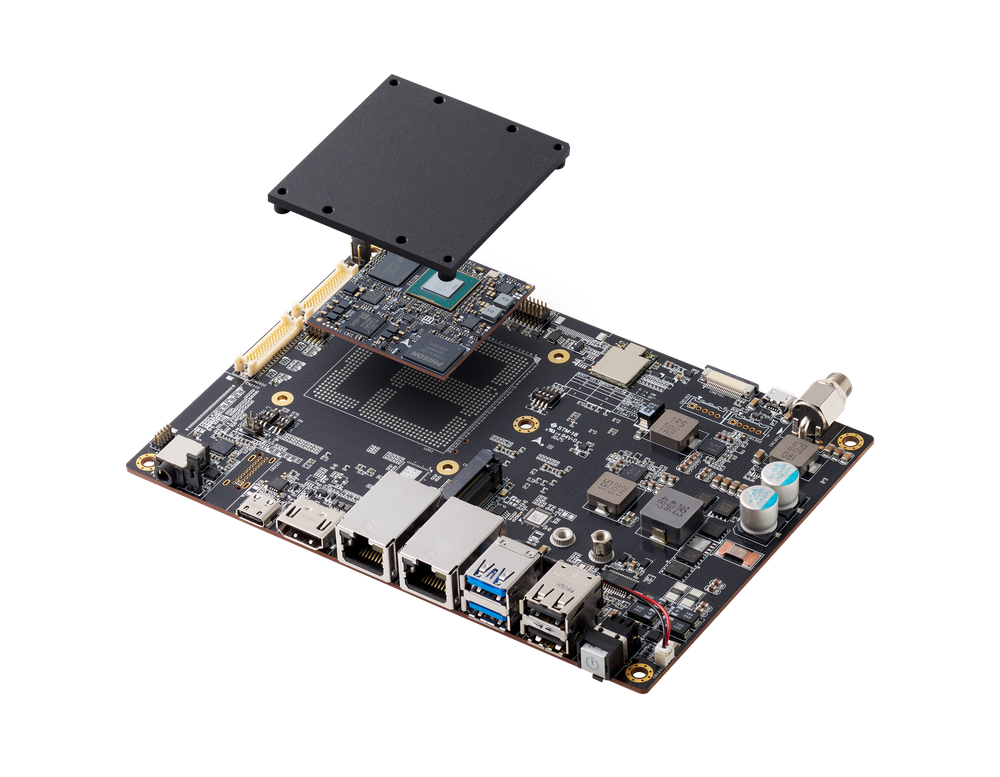

I-Pi OSM IMX95 consists of a simple carrier paired with a soldered down OSM 1.2 Computer-on-Module.

The module features NXP i.MX 95 series applications processor with hexa-core Arm Cortex-A55, an integrated up to 2 TOPS NPU (Neural Processing Unit), TrustZone technology, EdgeLock secure enclave, Arm Mali-G310 GPU 3D + 2D Graphics U, offering unmatched flexibility, rich connectivity, high scalability, and security for edge applications.

Modules are specifically designed for rugged industrial embedded applications that require long life, high MTBF and strict revision control.

Designing a bespoke industrial computer from scratch is costly and time-consuming. The I-Pi OSM IMX95 bridges the gap, offering the modularity of a System-on-Module (SoM) with the direct cost savings of a custom Single Board Computer (SBC): rugged solderable LGA design, automated SMT assembly, and reduced engineering overhead. Simplify your path to the edge. Use the I-Pi OSM IMX95 development kit to prototype, test, and deploy industrial-grade Edge AI, smart gateway, and automation applications in record time.
