PRODUCT INFORMATION
OSM R1.2 reference development kit based on NXP i.MX 95 Applications Processor

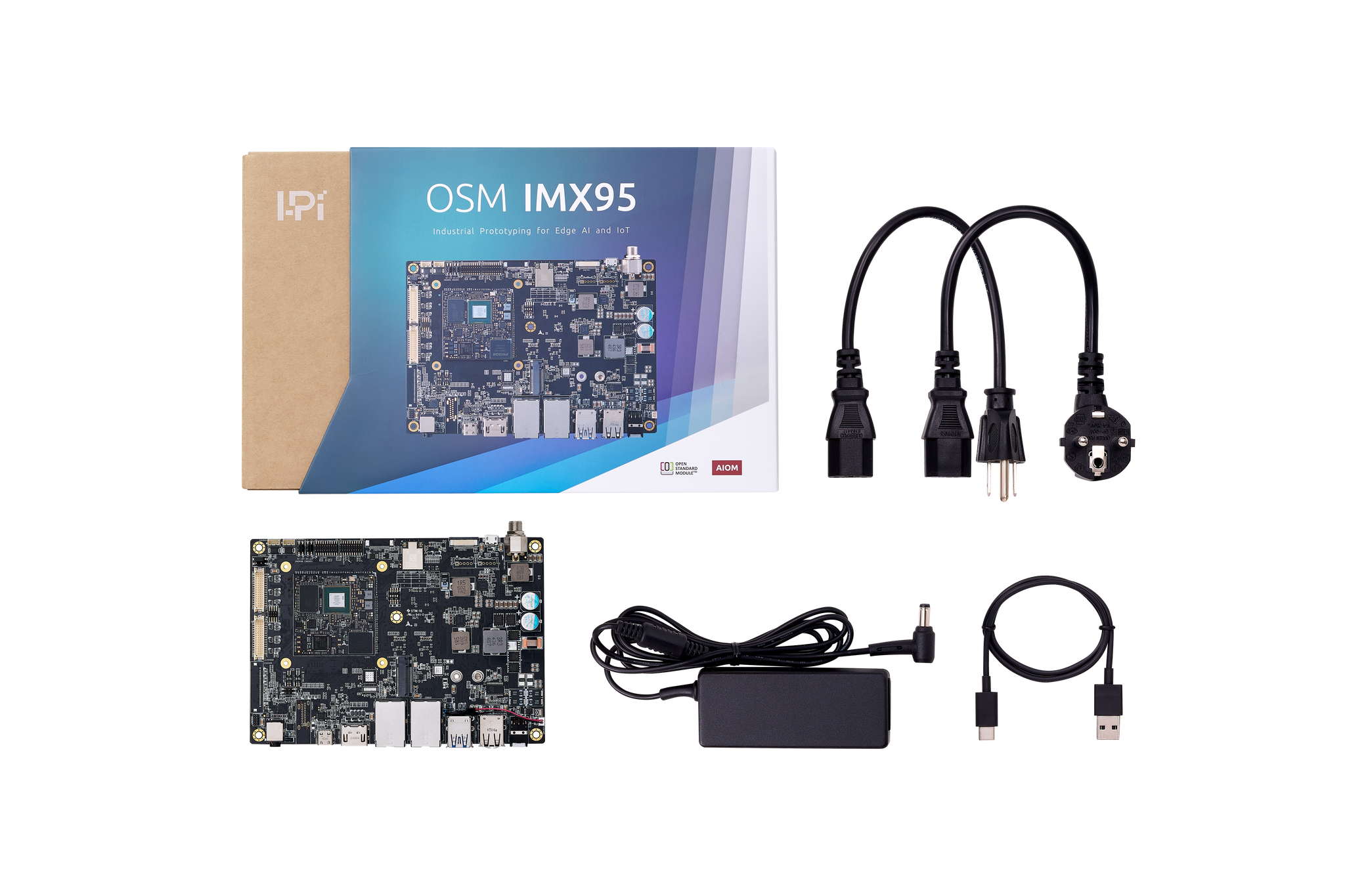

BOX INCLUDING:

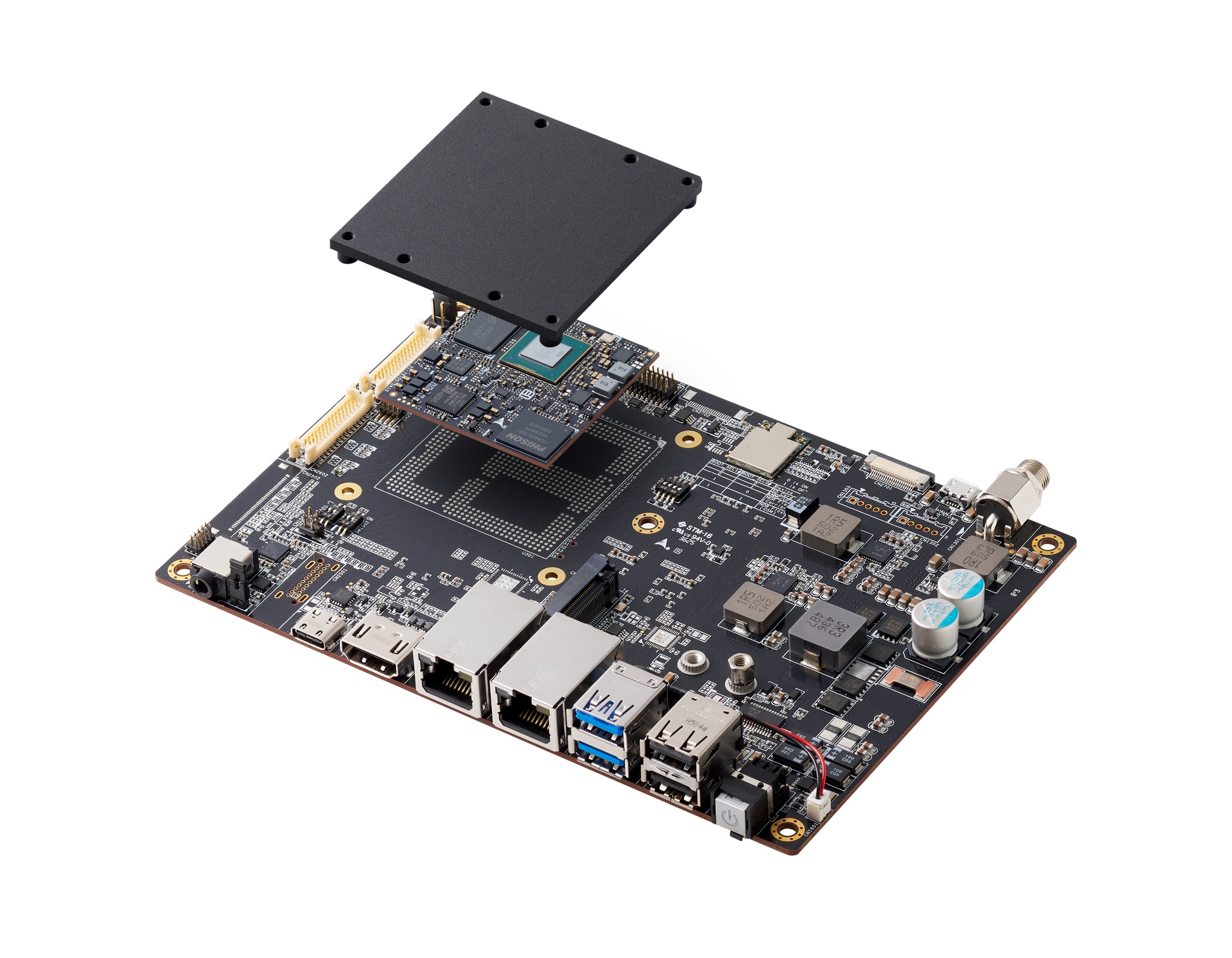

I-Pi OSM IMX95 assembly consisting of

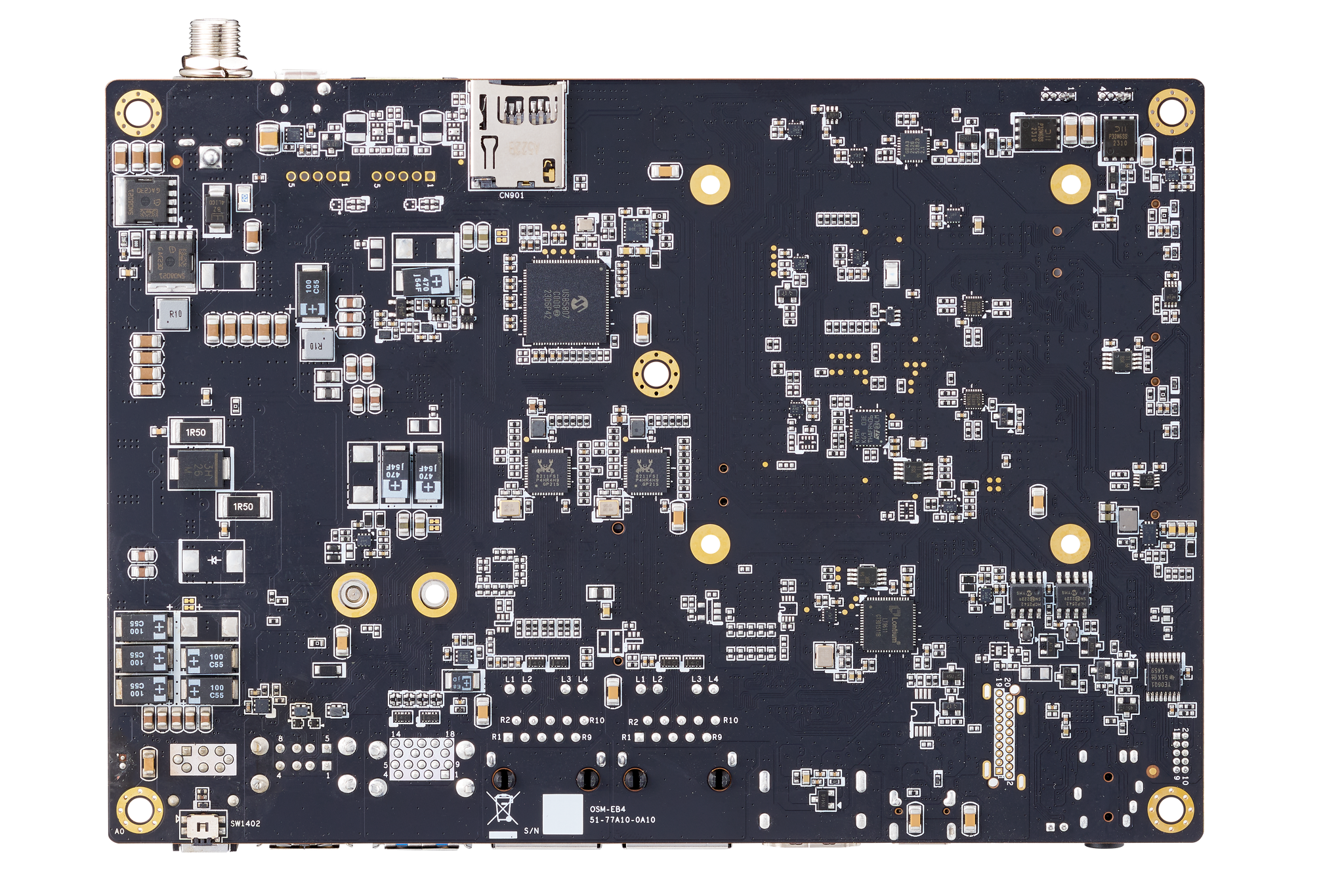

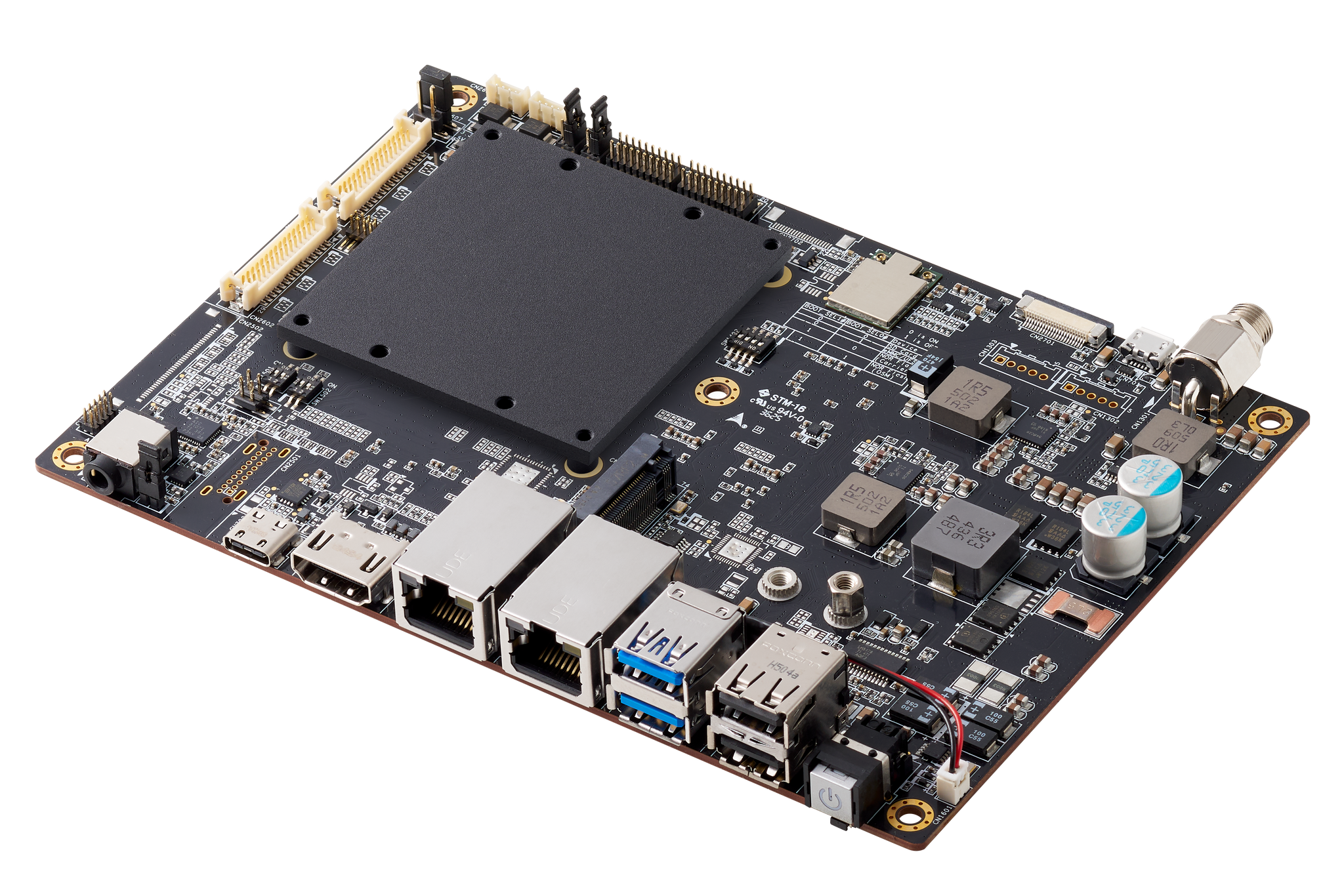

- ADLINK OSM-EB4 4” carrier with soldered down module
- ADLINK OSM-IMX95-H-4G-32G-CT OSM Size-L module with NXP i.MX95 and 4GB soldered LPDDR4 memory and 32GB eMMC, Wi-Fi & BT (optional)
- 110/220 VAC to 19VDC adapter (US/EU Type-C power cord)
- USB Type-C Cable
SPECIFICATIONS:
NXP i.MX 95 with hexa-core Arm Cortex-A55, with integrated up to 2 TOPS NPU (Neural Processing Unit), TrustZone technology, EdgeLock secure enclave, Arm Mali-G310 GPU 3D + 2D Graphics, ISP, VPU, MIPI-DSI 4 lanes, HDMI, LVDS, Camera MIPI-CSI 4 lanes, 2x GbE LAN (TSN capable), 2x USB 3.0 + 2x USB 2.0 + 1x USB 2.0 OTG, 5x UART, 1x M.2 M-key PCIe Gen3, 2x CAN-FD, 3x SPI, 14x GPIO.
