PRODUCT INFORMATION
A COM Express Type 6 Prototyping Kit based on Intel® Core™ Ultra X7 358 Processor / Intel® Core™ Ultra 7 356 Processor

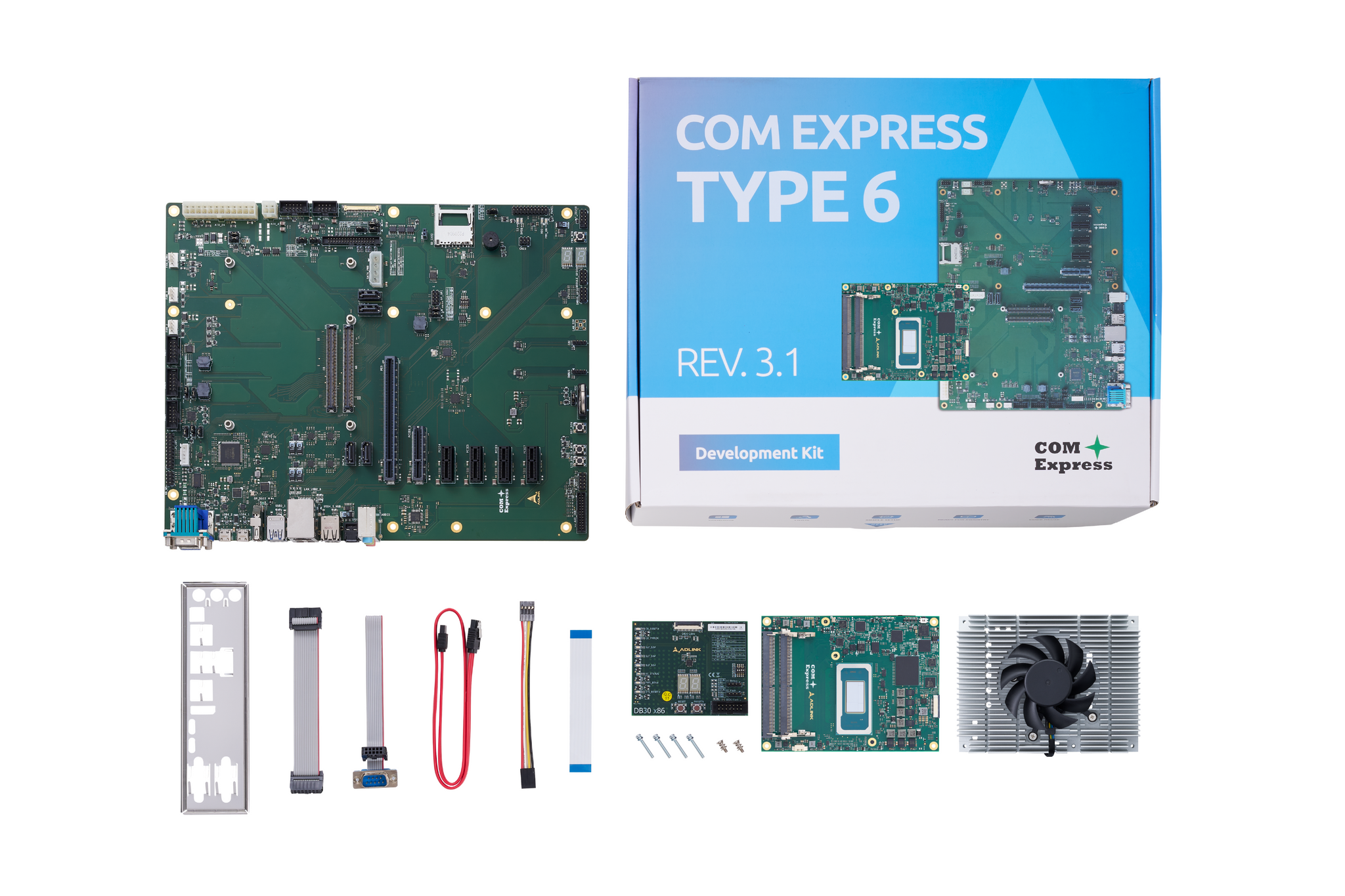

BOX INCLUDING:
- Express-PTL, COM Express Type 6 Basic size with Intel® Core™ Ultra Processor
- Express-BASE6 R3.1 carrier
- THSF-PTL-B, heatsink with active fan
- Debug board (DB30 x86) with cables
- Cable kit (SATA cable and Pin-header to DB9 adapter cable for COM port)
Note: Memory, storage, and power supply not included.
SPECIFICATIONS:
Intel Core Ultra Series 3 Processor 356H/358H with 4x Performance cores, 8x Efficient cores and 4x Low power Efficient cores, supporting up to 96GB DDR5 SO-DIMM memory, powerful Intel® Xe3 cores based graphics, supporting three display output through 1x DP and optional 2x USB4. Rich I/O includes 1x PCIe Gen4 x8, 1x PCIe Gen4 x4 and another 3x PCIe x1, 1x 2.5GbE LAN, up to 4x SATA, 4x USB 3.x/2.0/1.1, 2x USB 2.0/1.1, 4x COM Port, and 8x GPIO and header for SMBUs/I2C.
In addition, Intel Core Ultra Series 3 Processor 358H processor delivers up to 180 TOPS via integrated Intel NPU 5.0 AI accelerator and powerful 12Xe integrated GPU.
