PRODUCT INFORMATION:
Graphics Solution Prototyping Kit based on Intel Arc

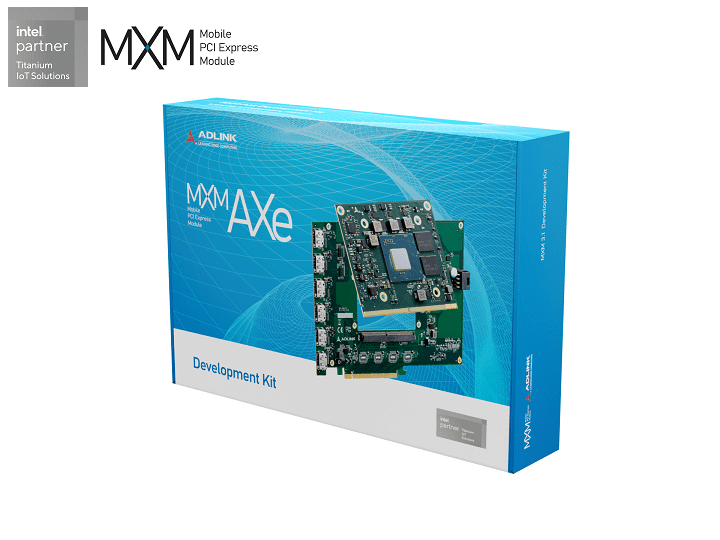

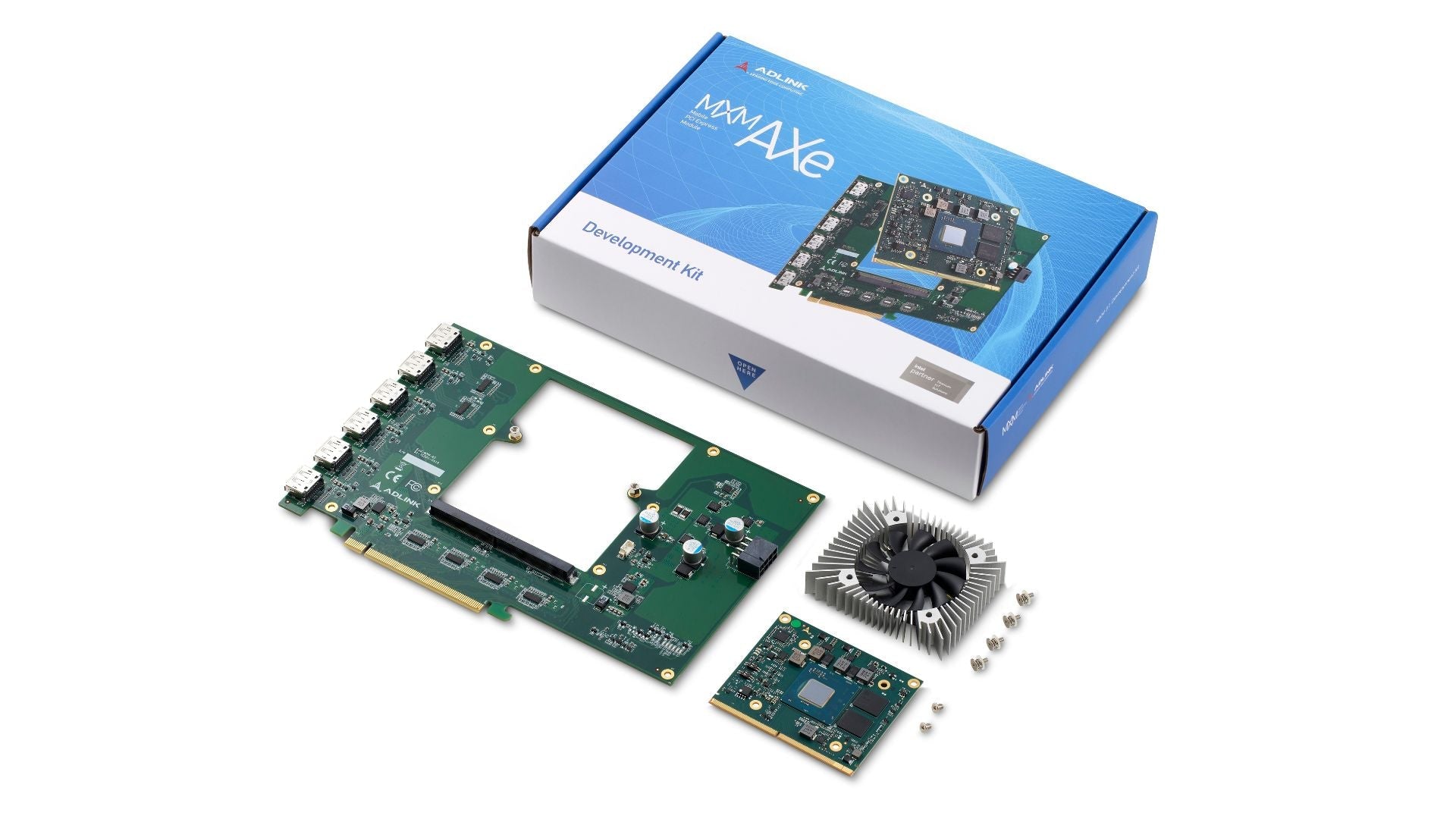

Box including:

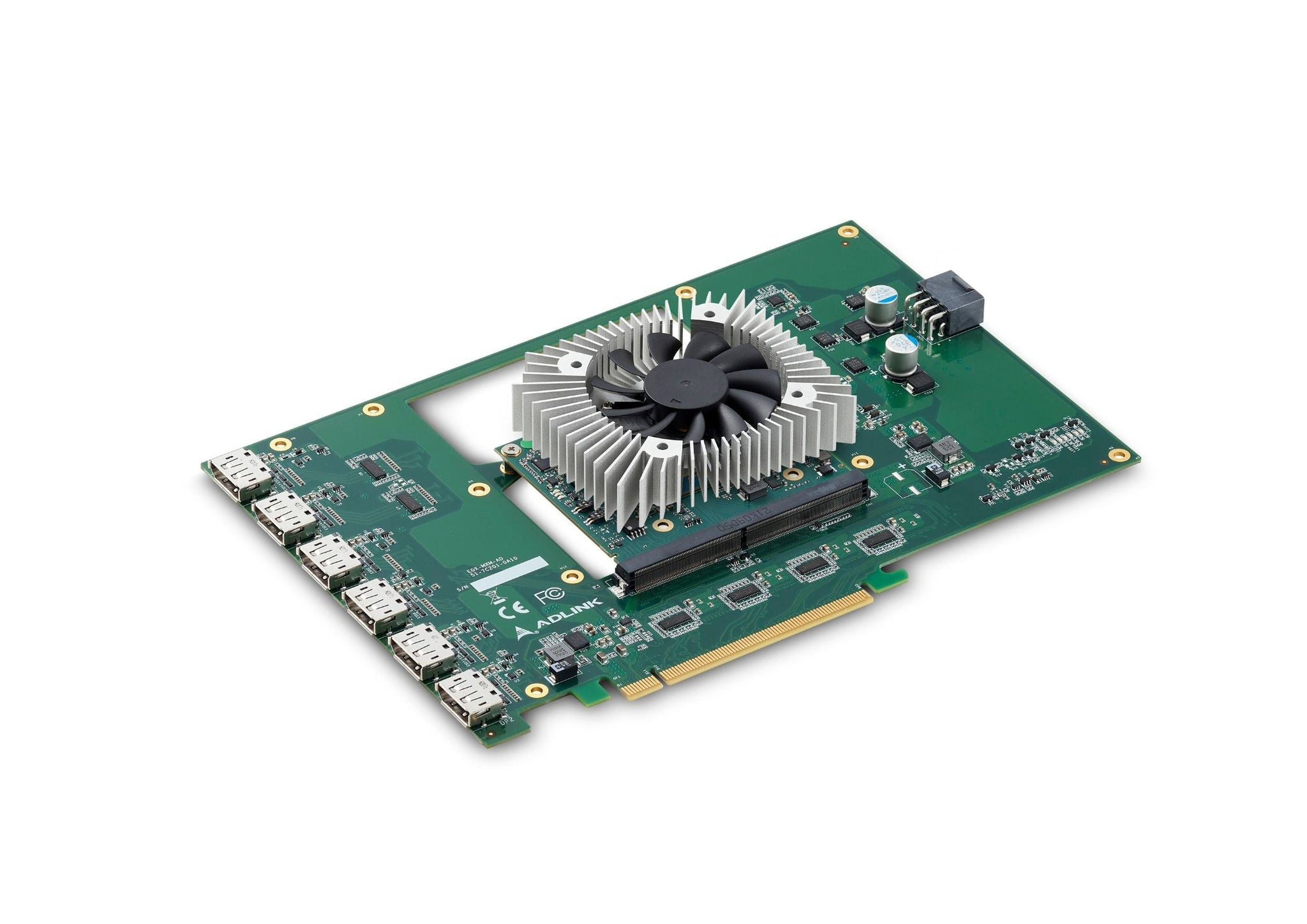

Preassembled MXM-AXe development kit consisting of:

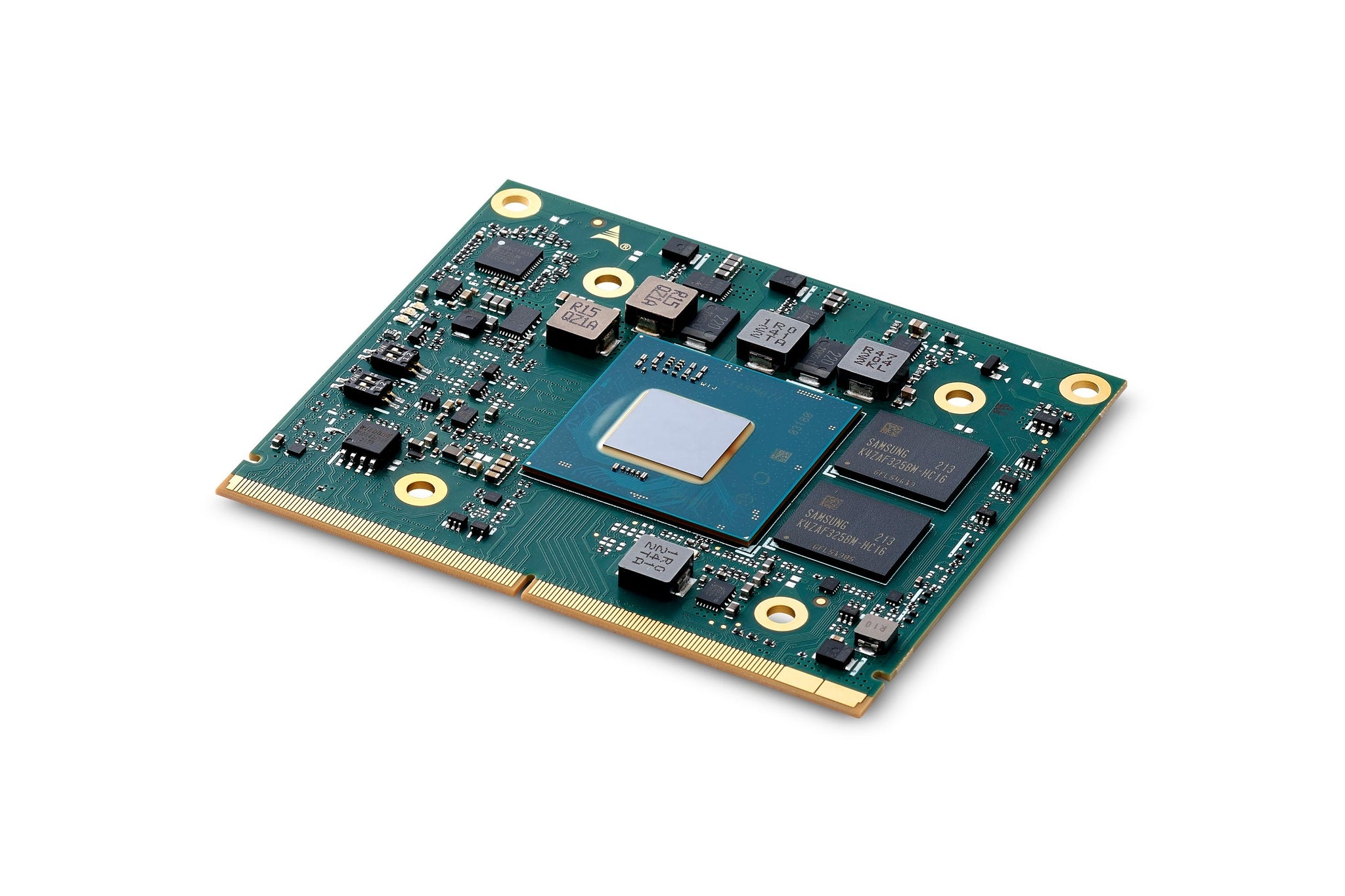

- MXM-AXe (R3.1) Type A module based on Intel Arc GPU
- Heatsink with fan

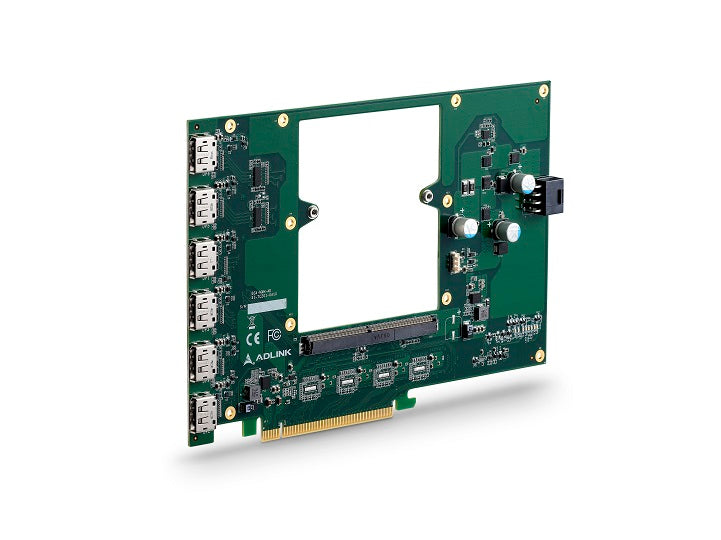

- PCIe to MXM adapter card
Specifications:
MXM 3.1 Type A module based on Intel Arc GPU A370M/A350M with dedicated ray tracing units, 4GB GDDR6 memory, along with support for 4x Display output, PCIe Gen4 x8 input, and AV1 hardware acceleration.
PCIe-to-MXM adapter card is an MXM 3.1 Type A, Type B, Type B+ compatible adapter card for MXM-AXe modules to support DP output and PCIe Gen4 input.
Different kinds of display configuration could be supported based on specified settings. Please contact us via our I-Pi forum or ADLINK Ask an Expert.
- A370M: 8 Xe cores, 8 Ray Tracing units, 128 Matrix Engines, 128 Vector Engines, 35W (50W configurable TGP)
- A350M: 6 Xe cores, 6 Ray Tracing units, 96 Matrix Engines, 96 Vector Engines, 25W (35W configurable TGP)
